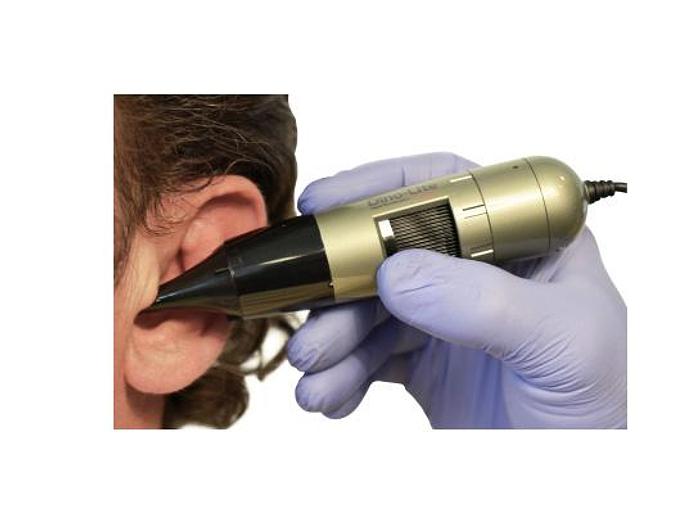

DIGITAL OTOSCOPE VIDEO OTOSCOPE EARSCOPE PRO, DINO-LITE

The Dino-Lite EarScope is a digital otoscope that is easy to use and will be very useful in general practice, in audiology and for ear, nose and throat specialists.

With the EarScope you can easily inspect and photograph the ear canal, eardrum and outer ear.

• Ear problems such as inflammation, blockage by accumulated earwax or fluid behind the eardrum can be recognized quickly. The practitioner always obtains a bright and clear image thanks to the integrated LED illumination and the adjustable optics between 55 and 90x

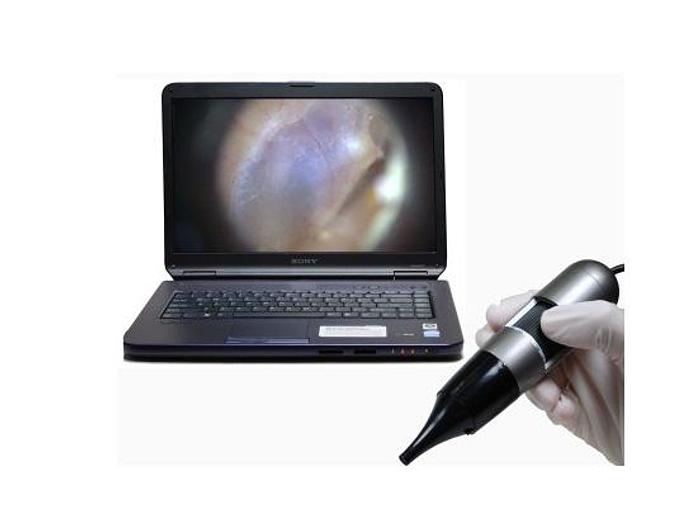

• The EarScope has a USB connection and works without batteries. This is why the EarScope is always ready for use. The image can be viewed on a computer screen to facilitate diagnosis which also allows the patient to view them. The images - either photo or video - can be stored digitally and easily added to a patient file or sent to a colleague. The EarScope is compatible with Windows and MacOS.

• It has a resolution of 1.3 mega pixels and comes with replaceable specula of 3, 4 and 5mm. Ten pieces of each size are included and speculum replenishment is possible.

SPECIFICATION

Lighting

Light/ LED type White

Number of LEDs 6

LED on/off switchable: Yes

Infrared filter IR cut-filter >650 nm

Diffuser available No

Polarizer: No

Optics

Magnification 55-90x

Lens type Glass with anti-reflection coating

Sensor

Sensor type CMOS

Resolution 1.3 Megapixel (1280x1024)

Maximum frame rate 30 fps

Compatibility

Interface USB 2.0

Operating system Windows 7, 8, 10 & 11, MacOS 10.9 and up

Software DinoCapture 2.0 (Windows), DinoXcope (Mac

OS)

Supported image formats

(Windows)

BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA,

PCX, MNG, WBMP, JP2, JPC, PGX

Supported video formats

(Windows)

WMV, FLV, SWF

Supported image formats

(MacOS)

JPEG, PNG

Supported video formats

(MacOS)

MOV

Imaging standards DirectShow, UVC

Housing

Housing material Composite/plastic housing

Magnification lock Yes

Dimensions 10.5cm (L) x 3.2cm (D)

Weight 95 g

Cable length 1.8m

Features

Special feature No

Measurement No

Calibration No

Microtouch sensor Yes

Information

Package contents Microscope, carry pouch, 10x 3 mm specula, 10x 4

mm specula, 10x 5 mm specula, software CD, user

manual

Warranty information 2 years European warranty

Regulatory approval Medical Device Class 1 – Medical Devices
