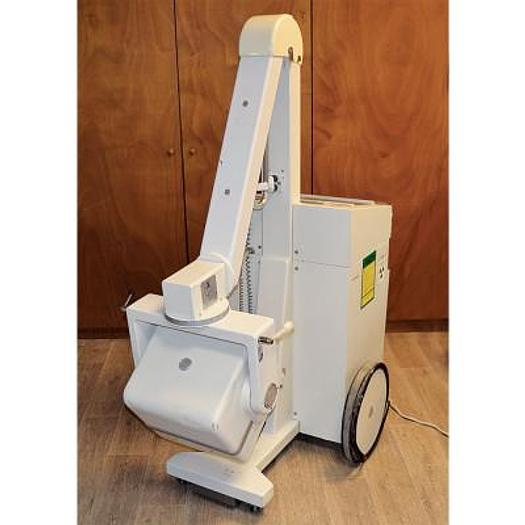

MOBILE RADIO SIEMENS MOBILETT 2

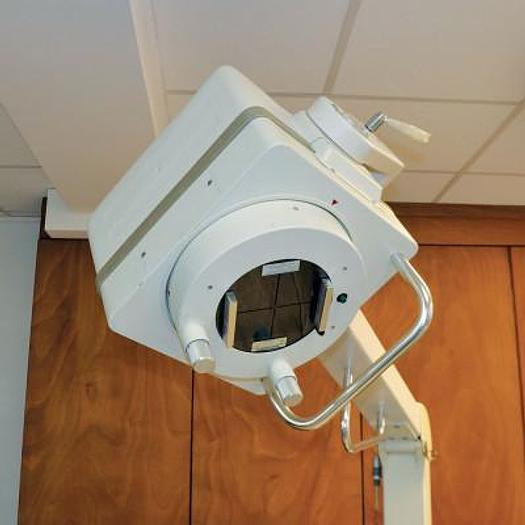

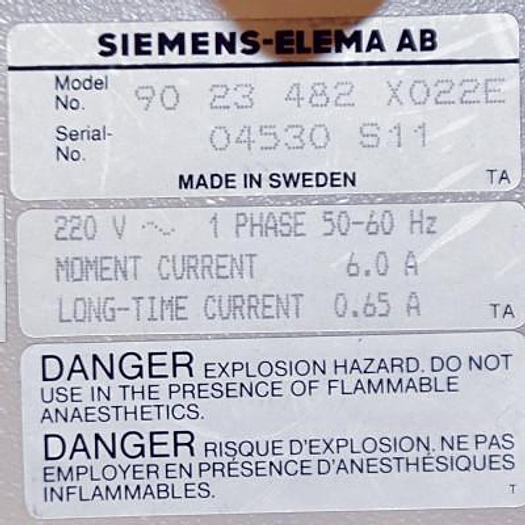

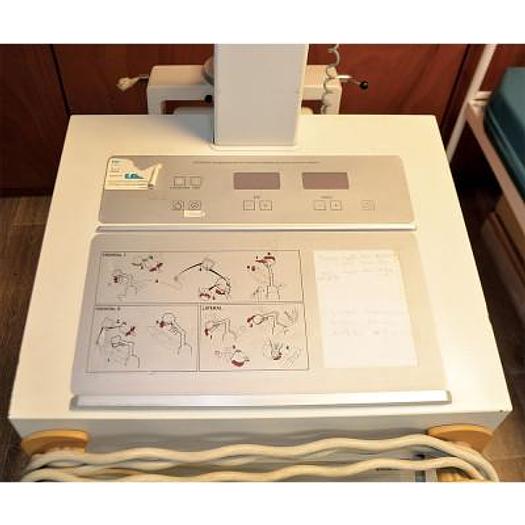

The Siemens Mobilett II is a 30 kW HF generator with light propulsion, static anode, 0.8 mm focal point, LED operator console, kV selection from 40 to 133 in 49 increments, mA selection from 0.5 to 200 in 51 increments, 50/60 Hz single-phase power source. Dimensions : - Tube positioning: maximum horizontal extension 1280 mm (50.4 inches), minimum horizontal extension 316 mm (12.4 inches), maximum focal point height 2145 mm (84.4 inches), minimum focal point height 470 mm (18.5 inches) Generator : - Self-calibrating high-frequency, high-efficiency - Generator with multipulse voltage Output - 30 kW at 96 kV 10 ms - 20 kW at 102 kV 100 ms - 450mA (maximum)
