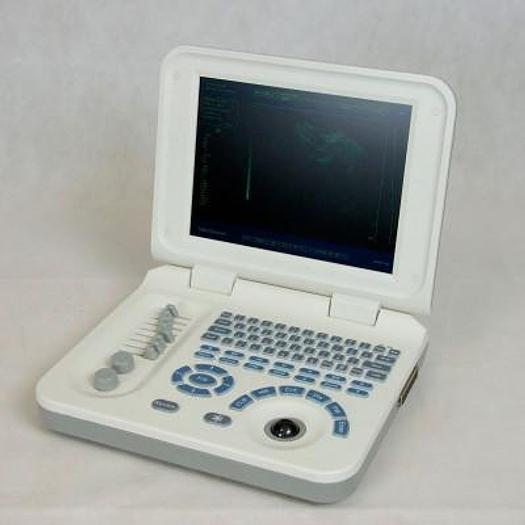

10.4-INCH PORTABLE ULTRASOUND SCANNER WITH 3 PROBES

For dynamic image diagnosis of the liver, gallbladder, spleen, kidney, bladder, pancreatic gland, as well as gynecology, obstetric exams, pregnancy and contraception. Screen：10.4 inches Gray scale：256 Deviation of circumference/measured area：≤20% Hours of operation：≥8 hours Battery operating time：≥1 hour Input power：≤22VA Dimensions：300×245×60（L×W×H）（mm） Image Magnification: ×0.8, ×1.0, ×1.2, × 1.5，×1 .8, ×2.0 (six modes) ×0.8, ×2.0 (Depth display) Pre-process: changeable aperture, dynamic apodization, dynamic digital filtering, etc. Pre-process: 8 types of γ correction, line correlation, frame correlation, point-line correlation, linear interpolation and 16 types of pseudo color processing, etc. Frequency conversion: 2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five period of frequency conversion; frequency range includes 5.5 MHz/6.0 MHz/6.5 MHz/7.0 MHz/7.5MHz can match high frequency probe. Measuring function: Distance, perimeter, area, volume, ellipse measurement, heart rate, gestational weeks (BPD, GS, CRL, FL, HL,etc), expected date of confinement and so on. Annotation function: hospital name, patient's name, gender and age: 64 body marks (with probe), full-screen character annotation, real-time clock display; Puncture guide: The puncture guide line can be displayed under B mode. Gain control: 8 segments TGC and full gain can be adjusted respectively. Image polarity: left/right, black/white and up/down reverse. Capacity cine loop: 256 consecutive images can be memorized successively when the real-time is displayed. Image playback: series playback or check one by one Permanent storage: 128 images Output interface: SVGA video output offers connection to SVGA color display; PAL video output offers connection to PAL display, video image recorder and image workstation, etc. USB port.
