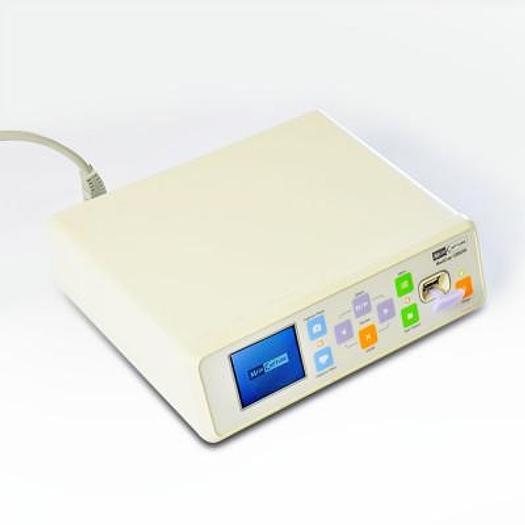

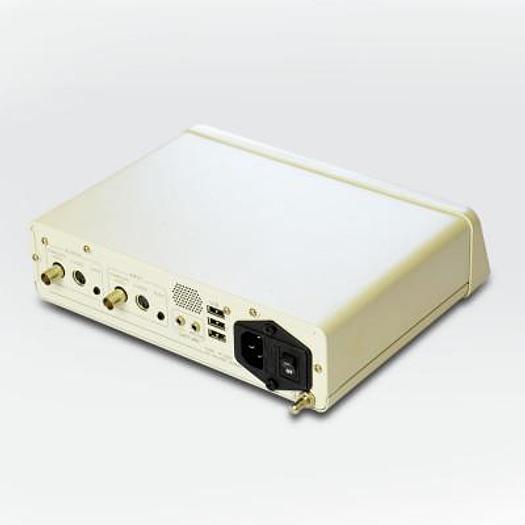

MEDICAPTURE USB200 IMAGE AND VIDEO CAPTURE

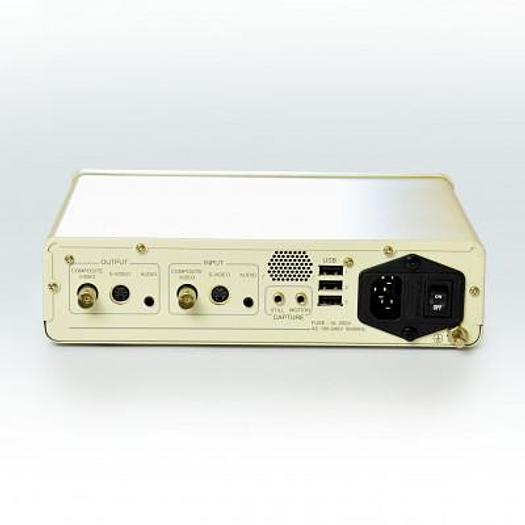

The MediCap® USB200 makes it easy to capture digital medical images and video sequences from virtually any analog medical imaging device with a standard BNC or S-Video output. Capture still images When an image you want to keep is displayed on your monitor, press the Capture Photo button. A still image will be recorded. You can continue to press this button to record additional images. Capture video clips When a video clip you wish to capture appears on your monitor, press the Capture Video button once to start recording, and press it again to stop recording. You can then press this button again to start recording a new clip, and so on. SPECIFICATIONS Model: USB200 MediCap. Digital capture device for medical imaging. Saves images and video sequences acquired from analog video sources to a USB flash drive or USB hard disk. Housing: Heavy-duty metal housing with high-impact plastic front plate LCD monitor: 2 ½", color (for video confirmation and navigation only, not for diagnostic purposes) Built-in speaker 200 Hz - 15 kHz, 1 W, menu-adjustable volume control (for audio confirmation only, not usable for diagnostic purposes). Video input/output : PAL or NTSC (menu-selectable) S-Video or composite BNC connections for output as for input Audio input/output: Standard 3.5 mm stereo jacks (one for input, one for output) USB support: USB 2.0, high-speed, 1 front connector, 3 rear connectors (all powered). The front connector is used to capture images and video sequences in the USB flash drive. The rear connectors are for additional options. Support: For hands-free capture (compatible with standard foot pedals, not supplied). foot pedal Standard 3.5 mm mini plugs (one for still image capture, the other for video capture). Specifications: Size: 240 x 210 x 63 mm - Weight: 1.7 kg Ambient temperature Storage and transport: -40° to +85° C / Operation: -20° to +40° C Resolution: NTSC: 720 x 480 pixels. PAL: 720 x 576 pixels Video formats : H.264, DVD quality. NTSC: 720 x 480 pixels. PAL: 720 x 576 pixels. Quality levels: Low (DVD-): 1.5 Mbit/s variable bit rate (DBV) Audio format: AAC, 2 channels, 16 bits, sampling rate 22050 Hz, bit rate 128 Kbps
