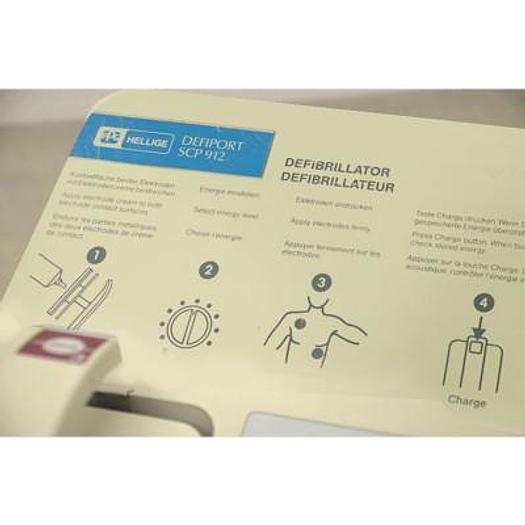

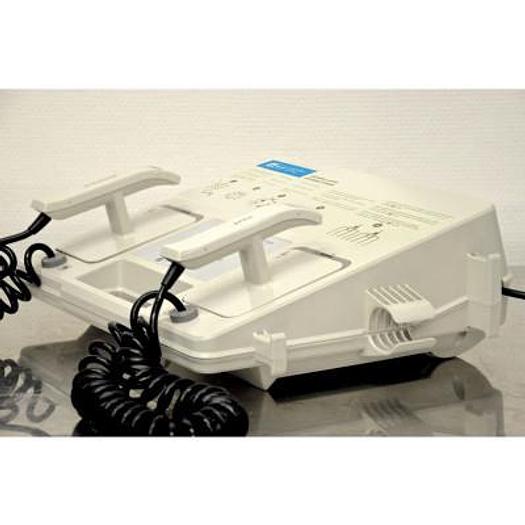

DEFIPORT HELLIGE RESPONDER DEFIBRILLATOR

The Marquette Hellige Defiport Defibrillator is lightweight and portable, designed for non-synchronized external defibrillations, for hospital use. Technical features: Indication of stored energy via indicator lights Indication of defibrillator charge via indicator light and audible signal (technical data in English) Dimensions 332 x 130 x 300 (WxHxD in mm) 3m power cord Weight 5.5 kg w/o. batter) 6 kg, incl. battery Power Mains supply, with or w/o. battery Charge time: to 360 Joules from mains or fully charged battery typically 12 seconds ENVIRONMENTAL SPECIFICATIONS Operation: Temperature: 0 to +40 °C, Rel. humidity: 10 to 95% at 20°C, Storage and Transport: Temperature: -30 to +60 °C, Rel. humidity: 10 to 95% at 20°C, Defibrillator 11 energy levels; 2J, 5J, 7J, 10J, 20], 30), 50J, 100J, 200J, 300J, 360J, selection with rotary selector switch Waveform: monophase damped sinusoidal halfwave with decay period Marquette Hellige Responder 1100: non-synchronized and synchronized defibrillation Detection of external signals Analog 1-Volt EGG signal or specific Sync signal from monitor Sync signal is returned to monitor to enable display of the Sync pulse Internal self-testwith indication of error codes for servicing Electrodes
