ENDOSCOPE WASHER-DISINFECTOR

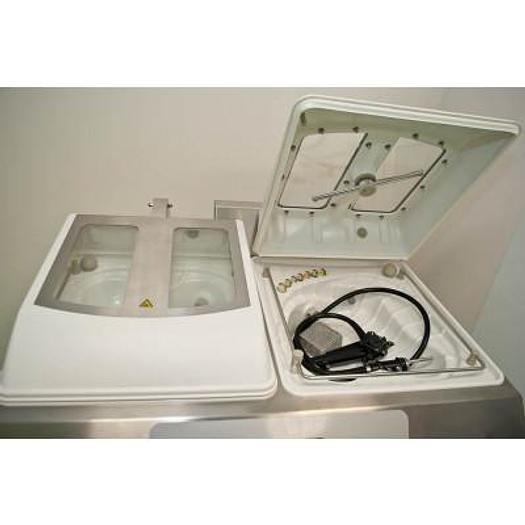

ADAPTASCOPE™ automatic washer-disinfector for endoscope processing. The ADAPTASCOPE™ automatic washer-disinfector is specifically designed to meet ISO 15883 standards and good endoscope processing practices. Advanced features enable shorter cycle times and, consequently, higher productivity. Dimensions and weights Width/depth/height 941 / 750 / 1033 mm Height with lid open 1580 mm Weight 200 kg (empty, without liquid) Cycle times Process Varies according to hospital conditions (water pressure, filters, temperature, product combinations) Chemical self-disinfection Approx. 28 minutes Thermal self-disinfection Approx. 70 minutes Installation conditions (for precise details, contact your local ASP representative) Minimum/maximum ambient temperature 5°C / 40°C Relative humidity 20-85% Boiler Boiler Depending on disinfectant, 3 kW or 9 kW Boiler capacity 46 liters Water softener Varies according to degree of water hardness Chamber volume Chamber volume 6 liters per chamber Total volume of dosing glass 200 ml Voltage Power consumption 220-240 V, 50 Hz, 13 A max Power consumption 3300 W max Standard plug Water supply Cold Main water supply, water softener, boiler Hot Varies according to disinfectant selected Maximum water supply 10 liters per minute Minimum/maximum pressure 2.5 / 4 bar Max. pressure difference hot/cold 1 bar Water quality Check water hardness, chlorine level and the quantity and size of water particles in the inlet system. Drain Number of drains 2 + 2 weirs Drain diameter DN 40 Drain height 530 mm Drain capacity 20 liters/min. per drain Maximum drain water temperature 95°C Aeration system Capacity 70 m3/h Pressure lift 3 m Process identification User code Up to 100 users Scope code Up to 200 endoscopes Specialist code Up to 50 specialists Connection RJ45 Ethernet connection
