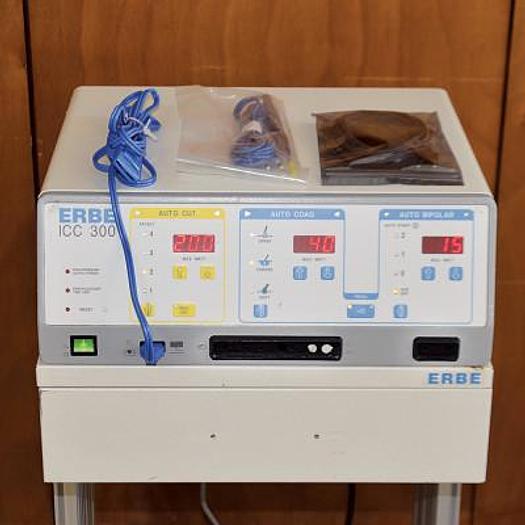

ERBE ICC 300 ELECTRIC SCALPEL

- Very good, used condition HF DEVICES SUPPLIED WITH ACCESSORIES (NEUTRAL PLATE, SINGLE AND BIPOLAR ELECTRODE,) 4.1 General description Cutting with automatic HF voltage control (Auto Cut) The ERBOTOM ICC is equipped with open- and closed-loop control systems. to control and regulate the parameters relevant to cutting quality, so that every cut quality is guaranteed to be reproducible and consistent. Gentle coagulation: Soft coagulation can be activated by a key or foot pedal. Forced coagulation: Forced coagulation is advantageous if effective hemostasis is to be achieved with relatively small-area electrodes, such as TUR resection loops. Spray coagulation: The spray coagulation mode on the CCI is also suitable for argon gas coagulation. Adjustable power limitation in the different coagulation modes For ERBOTOM ICC units, surgically relevant coagulation qualities, i.e. Soft Coag, Forced Coag. Spray Coag. and Bipolar Coag. effects, are by definition delimited from each other and selectable at the touch of a button. Nevertheless, the intensity of the different effects can be modified by power limitation. Bipolar coagulation : In this coagulation mode, the HF voltage is, similar to soft coagulation, automatically and constantly controlled, and its maximum value always remains below 200 Vp, so that the current density and therefore the coagulation effect is, for the most part, independent of the effective surface contact between the coagulation electrode and the tissue, provided that the effective contact area is not too large in relation to the currently defined power limitation.
