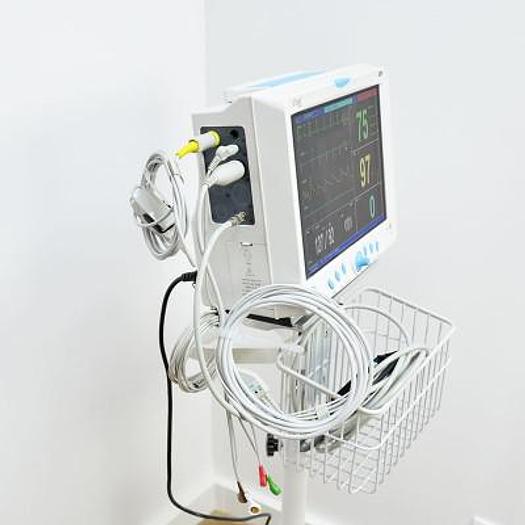

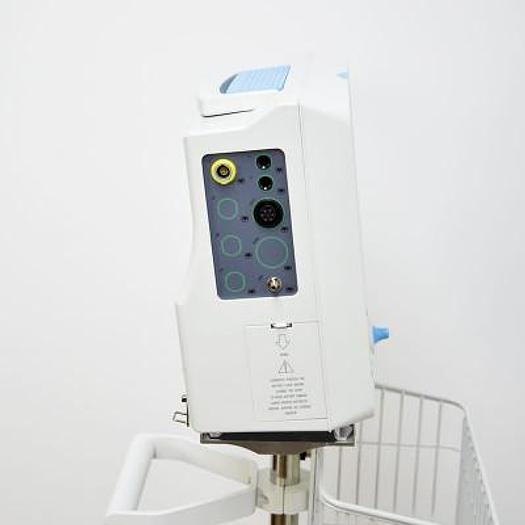

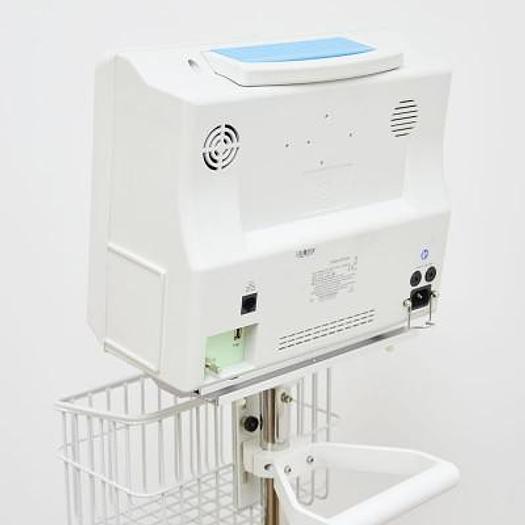

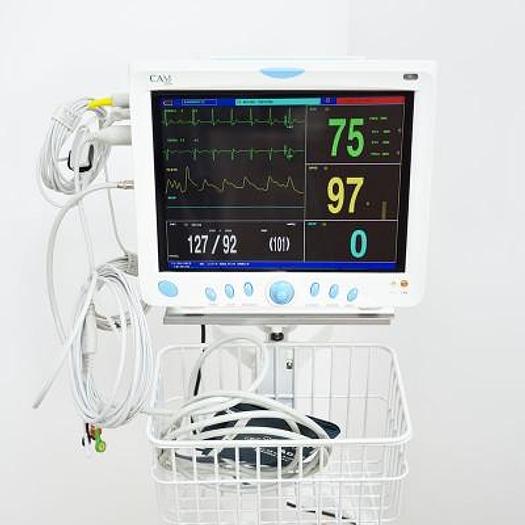

MULTIPARAMETER PATIENT MONITOR 'TOVASURV-9000' ON STAND
MULTIPARAMETER PATIENT MONITOR 'TOVASURV-9000' ON STAND
Fr2,257 (CHF)
Available quantity:1
orCall + 41 (0)27 720 41 00
Description
1. CE approved by FDA

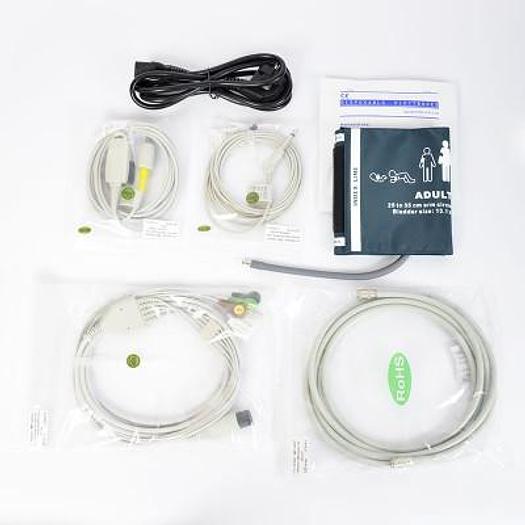

2. Standard configuration:
3/5 lead ECG SpO2 NIBP Temp REEE PR network rechargeable Lithium battery
3. Optional configuration:
Double Temp Double IBP thermal printer 12 lead ECG AND CO2 (general public/side smoke) wall mount cart
1. 12.1 polegada high-brightness TFT LCD screen, large digit display
2. Ergonomic design, portable, easy to use.
3. Simultaneous display of 7 ECG leads via one frame
4. Real-time ST segment and arrhythmia analysis
5. Date and waveform colors are adjustable
6. Unique digital SpO2 technology can work during precise movement and low perfusion
7. 96-hour charts and trend graphs and date storage
8. Compatible and Auto identify 3-lead and 5-lead ECG cable
9. Dual-wire NIBP pressure protection
10. Insulated floating, anti-defibrillation and anti-high-frequency interference protection
11. Dual-wire NIBP pressure protection
12. Networking with central monitoring system, up to 64 beds in one group
13. Multi-language: English, French, German, Italian, Portuguese, Spanish, Russian, Polish
1. 5-lead or 3-lead selectable
2. Input: 5-lead: RA; LA; RL; LL; V or R; L; N; F; C
6. Protection: withstand 4000VAC/50Hz Voltage in insulation against electro and defibrillation
9. Alarm range: Adult: 15-300bpm
12. S-T detection: Yes, arrhythmia analysis: YES
NIBP
5. Measurement range: Adult: 10-270mmHg
SpO2
3. 0-69% not specified
Respiration
3. Alarm range: adult: 6-120 RPM
Temperature
Specifications
Condition | New |
Stock Number | 6692 |
3. delivery selection | I; II; III; AVR; AVL; AVF; VX; cal |
4. gain selection | 12.5 mm/s, 25 mm/s, 50 mm/s |
5. precision | 1bpm or 1% , whichever is greater |
7. calibration signal | 1mv5% |
8. operating modes | diagnosis, monitoring, surgery |
10. pediatric/neonatal | 15-350bpm |
11. alarm range | -2.0mV-2.0mV |
13. alarm | Yes, audible and visual alarm, revocable alarm events |
1. method | Impedance RA-LL |
2. operating modes | manual/automatic/STAT |
3. unit of measurement | mmHg/kPa selectable |
4. measurement types | systolic, diastolic, average |
6. overpressure protection | Yes |
7. resolution | 1 mmHg |
8. precision | mean error and standard deviation per ANSI/AAMI sp-10 standard |
9. alarm | systolic, diastolic, average |
1. measuring range | 0-100% |
2. precision | 2 digits (70 ~ 100% ) |
4. alarm range | 0-100% |
2. pediatric/neonatal | 6-150 rpm |
4. pediatric/neonatal | 6-150 rpm |
5. apnea alarm | YES |
1. resolution | 0.1 degrees centigrade |
2. channel | dual-channel |
3. alarm range | 0-50 degrees centigrade |
