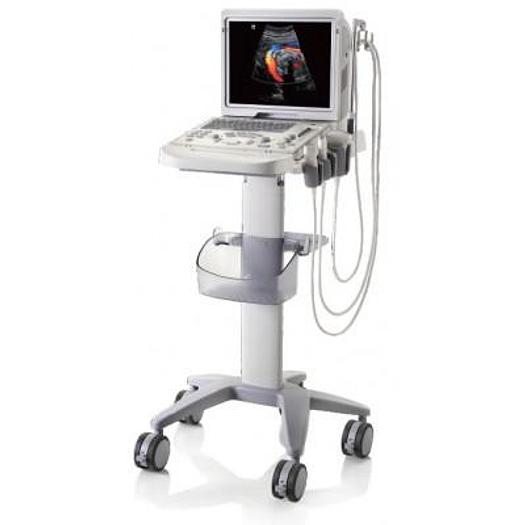

MINDRAY Z5 COLOR DOPPLER SYSTEM

MINDRAY Z5 COLOR DOPPLER SYSTEM

Fr12,075 (CHF)

orCall + 41 (0)27 720 41 00

Description

MINDRAY Z5 COLOR DOPPLER SYSTEM sold with 1 probe: - 3C5s abdominal probe options: - 6CV1s vaginal probe - lineare probe 10L4s MINDRAY Z5 COLOR DOPPLER SYSTEM sold with 1 probe: - Abdominal probe 3C5s Your unique requirements of superior image quality, affordability , versatility and, mobility can now be met with the new portable Color Doppler system Z5. With a rare combination of high performance and low cost, the Z5 is the result of Mindray's continuous efforts towards making healthcare more accessible to humanity. Be it an indoor abdominal scan, or an outdoor emergency requirement, the Z5 can be used limitlessly for various applications. Switching from conventional Black & White systems to a highly efficient por table Color Doppler system, has now been made easier than ever before, making it possible for you to reach beyond boundaries. VERSATILITY Extended scanning angle with ExFov function High frequency linear probe for superficial scanning Compatible with Mindray's B/W ultrasound transducer series Full application comment library and body mark PRODUCTIVITY MOBILITY Compact and streamlined design weighing 7.7kg 15'' LCD monitor with 30 degree tilt function Dual universal transducer connectors Two level backlit keyboard for varying requirements Specifically designed trolley, UMT-160, for easy mobility Can be packed in a convenient hand-carried bag for easy transportation 1.5h uninterrupted scanning with rechargeable battery Extra battery is optional for extended scanning time mindray z5 color doppler system: sold with :- vaginal probe - line probe

Specifications

ConditionNew
Stock Number3677
Options- vaginal probe - lineare probe
6cv1s- lineare probe
Scanning modesB, Color, PW, Power, M, FreeXros M
Image display modesB, 2B, 4B, B/C, B/M, B/PW, Triplex PW
ApplicationsABD/OB/GYN/CAR/SML/URO/VAS/ORTH/EM/NERVE
Transducer varietyConvex, Linear, Micro-convex, Endocavity
ItouchQuick image optimization with one-click
IzoomInstant full screen zoom with one-click
IstationPatient database review and analysis platform
IstorageDirect data transfer to PC
ClipboardEasy play, preview and sharing of cineloop
Multiple image formatsBMP, JPG, DCM, AVI, DCM, CIN
Fast responseRapid system boot-up within 30s
